SMEMA Requirements
Logas
uses SMEMA robots. The equipment has restrictions for component height at certain
portions of the PCB; holes with specific shapes for locate pins; clearances on edges
for clamps etc. Clients are advised to consult the drawings below during board design.

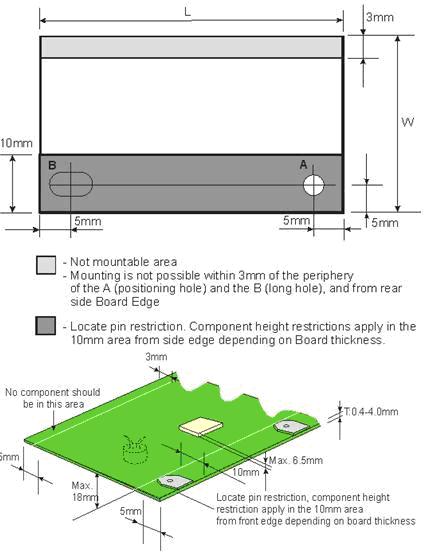

Fig 4: SMEMA Requirements for PCB design |
